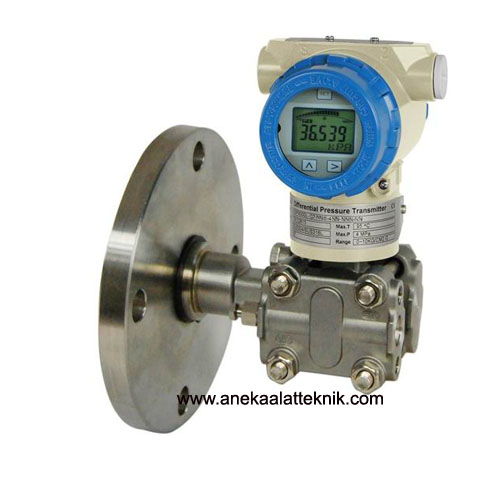

Smart Transmitter Alia ADP9000L

Deskripsi

Smart Transmitter Alia ADP9000L

FEATURES Smart Transmitter Alia ADP9000L

Updating time of output current in 200 ms
Improved performance, increased accuracy and greater stability
Two years stability of 0.15%
0.075% accuracy
Parameter setting by keypad directly
4-20 mA output plus direct digital HART communication
Automatic zero calibration by push-button
Explosion proof and weather proof housing

SPECIFICATION

Process Fluid:	Display:
Liquid, Gas of Vapor	5 Digits programmable & 0-100% Bargraph
Application:	Display Unit:
Liquid Level, Differential Pressure,	Standard 22 different engineering unit
Gauge Pressure, Absolute Pressure	5 Digits programmable for special unit
Measuring Range:	Keyboard:
0 – 6.0 kPa ~ 0 – 40 kPa (Minimum)	3 internal keys for programming
0 – 4.0 MPa ~ 0 – 20.0 MPa (Maximum)	and output setting
Turndown Ratio:	Current Output:
100 : 1	4 – 20 mA 2 wires with Hart Signal
Accuracy:	Load
+/- 0.075% of span	Rohm=(Vdc-9)*50
Stability:	Power Supply:
+/-0.15% of URL for 2 years	9 – 36 VDC
Working Temperature:	Digital Communication:
-40 to +250 ^oC	Hart Protocol (Compatible)
Max. Pressure:	Damping:
40 MPa (Dependent on flange rating)	0 – 32 seconds
Material:	Response Time:
Flange/Adapter	100 mS
Carbon Steel / Stainless Steel 304 /	Turn on Time:
Stainless Steel 316	2 Seconds with minimum damping
Diaphragm	Zero Calibration:
Stainless Steel 316L / Hastelloy B /	Automatic calibration by push-button
Hastelloy C / Monel / Tantalum	Cable Entry:
Bolts & Nuts	1/2″ NPT( Female ) / M20 Conduit Threads
Carbon Steel / Stainless Steel 316	Temperature Effect:
Name / Tag Plate	+/-0.18% ~ +-0.5% of span per 20 ^oC
Stainless Steel 304 / Stainless Steel 316	EMI/RFI Effect:
Converter Housing	Follow SAMA PMC 33.1 from 20 to 1000
Low copper cast aluminum alloy with	MHz and for field strengths up to 30 V/m
polyurethane, light blue paint	Process connection:
