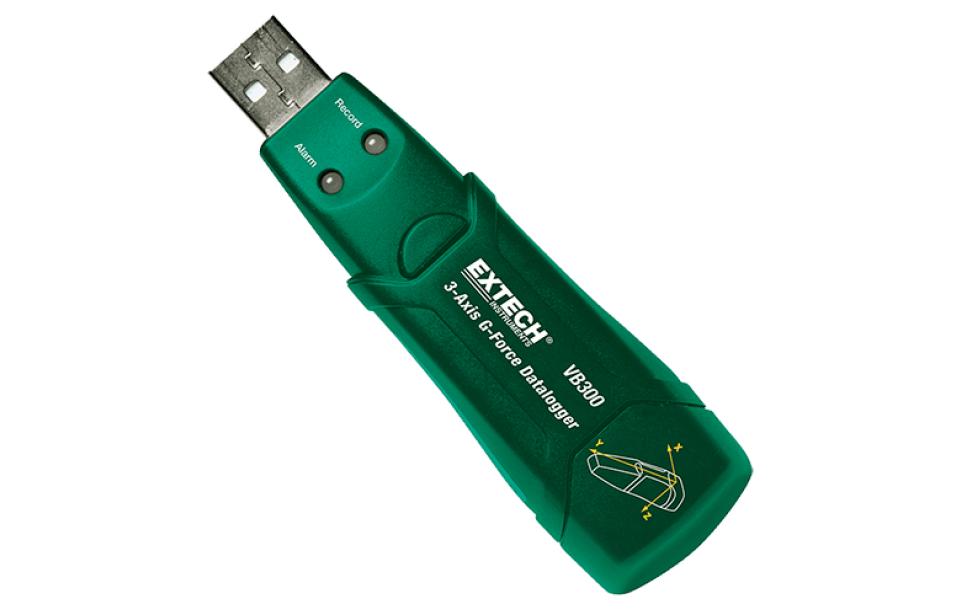

VB300
3-Axis G-Force USB Datalogger
Records and times 3-axis shock and peaks
Features :
– Built-in 3-axis accelerometers record the time when shock occurs
– Real time FFT Frequency and Time-Domain Vibration Analysis
– Record storage, transport or operational data over time
– USB interface for easy set-up and data download
– Datalogs 112028 Motion Detection samples per axis, or 168042 Normal samples
– Selectable X-, Y-, Z-axis or any combination (via software)
– Selectable data sampling rate: 50ms to 24 hours
– Manual and Programmable start modes
– User-programmable alarm threshold
– Long battery life
– Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows® compatible analysis software
| Specifications | Range |
| Sensor Type | MEMS semiconductor |
| Acceleration Sampling Rate (Datalogger) | 200Hz |
| Acceleration Range | ±18g |
| Acceleration Resolution | 0.00625g |
| Acceleration Accuracy | ±0.5g |
| Bandwidth | 0 to 60Hz |
| Sampling rate (Software) | 500 ms to 24 hours |
| Memory | 4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
| Data Format | Time stamped peak acceleration, average and peak vector sum |
| Dimensions | 3.7 x 1.1 x 0.8″ (95 x 28 x 21mm) |
| Weight | 1oz (20g) |
