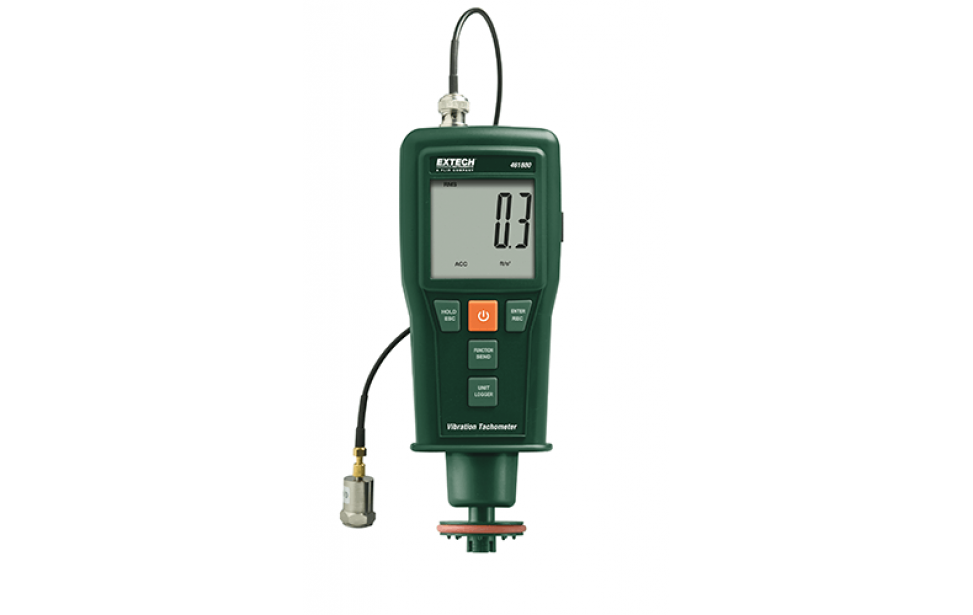

Vibration Meter Merk Extech 461880

461880
Vibration Meter + Laser/Contact Tachometer
Measures Acceleration, Velocity and Displacement plus RPM and Linear Surface Speed

Features :
– Remote vibration sensor with magnetic adapter on 39″(1m) cable
– Wide frequency range of 10Hz to 1kHz
– RMS or Peak Value measurement modes
– Manual/Auto store/recall up to 1000 readings
– Data Hold and Auto shut-off
– Contact and Non-Contact (Laser) tachometer functions
– Uses a laser for greater distance non-contact measurements up to 4.9ft (1.5m)
– Large LCD with characters on display reverse direction depending on contact, photo, or vibration mode
– Windows® 95/98/NT/2000/XP compatible software (included) allows captured readings to be downloaded to your PC for further analysis

Deskripsi



Specifications Range
Vibration Meter
Acceleration 656ft/s² , 200m/s² , 20.39g (peak)
Velocity 7.87in/s, 200mm/s, 19.99cm/s (peak)
Displacement 0.078in, 2mm (peak-to-peak)
Resolution 1ft/s² , 0.1m/s² , 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm
Basic accuracy ±(5%+2 digits)
Tachometer
Photo 10 to 99,999rpm
Contact 0.5 to 19,999rpm
Surface Speed 0.2 to 6,560ft/min (0.05 to 1,999.9m/min)
Basic accuracy ±(0.05%+1 digit)
Dimensions 7.4 x 3 x 1.8″ (188 x 75.5 x 46.8mm)
Weight 1.12lbs (507g)
