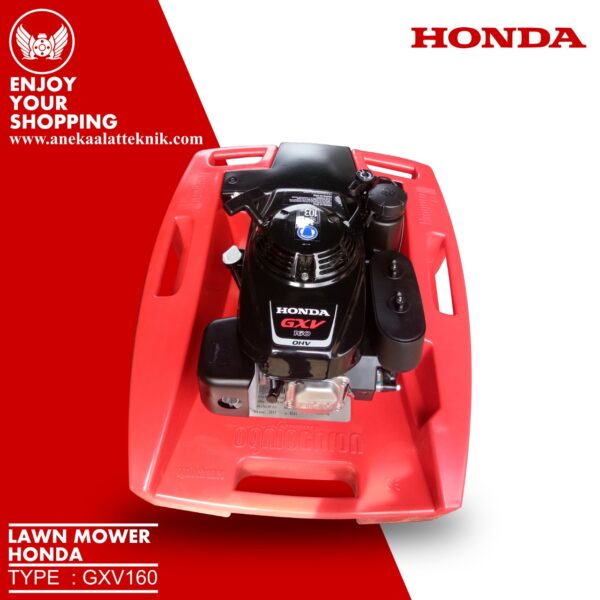

lawn mower honda gxv160

Engine Type

Air-cooled 4-stroke OHV

Bore x Stroke

68 X 45 mm

Displacement

163 cm3

Net Power Output*

4.3 HP (3.2 kW) @ 3,600 rpm

Net Torque

7.1 lb-ft (9.6 Nm) @ 2,500 rpm

PTO Shaft Rotation

Counterclockwise (from PTO shaft side)

Compression Ratio

8.0:1

Carburetor

Float Type

Ignition System

Transistorized magneto

Starting System

Recoil

Lubrication System

Splash

Governor System

Centrifugal Mechanical

Air Cleaner

Dual element

Oil Capacity

0.69 US qt (0.65l)

Fuel Tank Capacity

1.5 U.S. qts (1.4 liters)

Fuel

Unleaded 86 octane or higher

Dry Weight

32 lb (14.5 kg)

Length (min)

16.3" (415mm)

Width (min)

14.1" (359mm)

Height (min)

13.9" (354mm)
