Jual Flowmeter Oval Gear

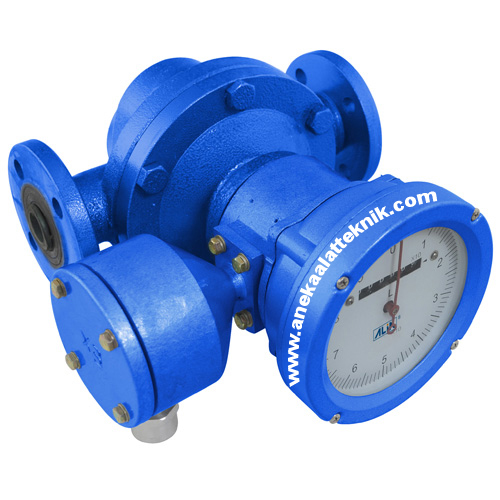

APF810 series is designed in OVAL GEAR technology with digit display for Totalizer & flowrate and providing scale pulse
and analog output.
APF810 series OVAL GEAR flowmeters are both high accuracy and easily adaptable to most industrial applications

Deskripsi

Harga Flowmeter Oval Gear Alia APF810 Series

FEATURES

200713112035429 Jual Flowmeter Oval Gear 10 – 200 mm (3/8″ – 8″) lines sizes
200713112035429 Jual Flowmeter Oval Gear Handles viscosities up to 20,000 CP
200713112035429 Jual Flowmeter Oval Gear Wide range of application
200713112035429 Jual Flowmeter Oval Gear Various process connection types available
200713112035429 Jual Flowmeter Oval Gear 5 digit (Resettable) +6 Digit Totalizer (Mechanical)
200713112035429 Jual Flowmeter Oval Gear 4-20 mA or pulse output
200713112035429 Jual Flowmeter Oval Gear High accuracy of +/-0.5% of reading(or+/-0.2% of reading)
200713112035429 Jual Flowmeter Oval Gear Direct-reading Register with reset function

SPECIFICATION
Size: Mechanical Register:
10,15,20,25,40,50,80,100,150,200 mm Totalizer(Non-Reset)
Flow Range: 6 Digit + 2 Pointer
0.03 – 340 M3/Hr Totalizer(Resettable)
Accuracy: Upper Counter
+/- 0.5% of reading (Standard) 6 Digit + 2 Pointer (Non-Resettable)
+/- 0.2% of reading (Option) Lower Counter
Repeatability: 4 Digit + 2 Pointer (Resettable)
+/-0.1% of reading Resolution:
Material: 0.01 Liter (10 mm)
Body, Cover & Flange 0.1 Liter (15-25 mm)
Cast Iron / Cast Steel / S.S.304 / S.S.316 1 Liter (40 -80 mm)
Oval Gear 10 Liter (100 – 200mm)
Cast Iron / Stainless Steel 316 Current output:
O-Rings 4-20 mA (2 wire)
Viton Load
Shaft Sleeve Rohm(Vdc-6)*50
Bronze / Graphite Pulse Output:
Register Housing Open Collector (3 Wire, Unscaled pulse)
Aluminum Alloy Rating
Max. Viscosity: 11 to 26Vdc, 50 mA Max.
0.3 – 200 CP (Standard) Cable Entry:
201 – 2000 CP (Optional) M20 (Standard) / 1/2″ NPTF(Optional)
Operating Temperature: Aviation connector (Non-Display Register)
-10 to 120 oC (-10 to 80oC with Output) Protection Class:
-10 to 120 oC with output (Optional) IP65
-10 to 250 oC (Optional) Intrinsically Safe, EEx ia IIC T5
Ambient Temperature: Explosion Proof, Ex d IIB T6
-25 to +60 o Painting:
Max. Pressure: Red lead + Sky Blue (Alia Blue)
Cast Iron Optional:
16 Kg/cm2 Heating Jacket (Heat oil or Steam)
Cast Steel Strainers, T-Type or Y-Type
63 Kg/cm2 Air Vent, Flange End
Stainless Steel
25 Kg/cm2
Process Connection:
Flange
Flange Type:
JIS 10K / JIS 20K / JIS 40K
ANSI 150# / ANSI 300# / ANSI 600#
DIN P10 / PN16 / PN25 / PN40
