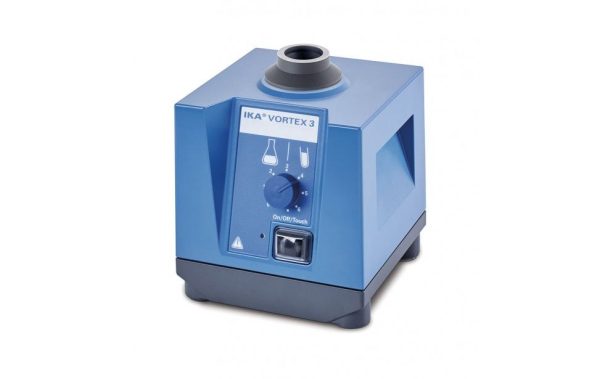

Vortex Mixer Merk Ika VORTEX 3

VORTEX 3
Vortex Mixer

Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation.
– Wide speed range, infinitely adjustable
– Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately
– Attachments securely click onto appliance in any position
– Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks
– Sturdy metal zinc die cast casing
– Compact design
– Short-time operation activated by pressing attachment (touch function)
– Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)
– Eccentric with ball bearings
– Suitable for continuous operation with low self heating thanks to self ventilation of motor

Shaking movement: orbital
Orbital diameter: 4 mm
Infinitely adjustable speed range: 500 – 2.500 rpm

Deskripsi

Technical data :
– Permissible ON time : 100%
– Motor rating input : 58W
– Shaker diameter : 4mm
– Motor rating output : 10W
– Permissible relative humidity : 80%
– Frequency : 50/60Hz
– Speed min (adjustable) : 500rpm
– Width : 127mm
– Power input : 60W
– Voltage : 200 – 240/115/100V
– Weight : 4.5kg
– Height : 136mm
– Depth : 149mm
– Permissible ambient temperature max. : 40°C
– Permissible ambient temperature min. : 5°C
– Shaking table lock : no
– Protection class according to DIN EN 60529 : IP 21
– Type of movement : orbital
– Analog output : no
– RS 232 interface :no
– Speed display :none
– Touch function :yes
– Speed max. : 2500rpm
– Speed min. : 0rpm
– Operating mode : continuous operation
– Number of microtiter plates : 1
– Working with microtiter plates : yes
– Timer : no
