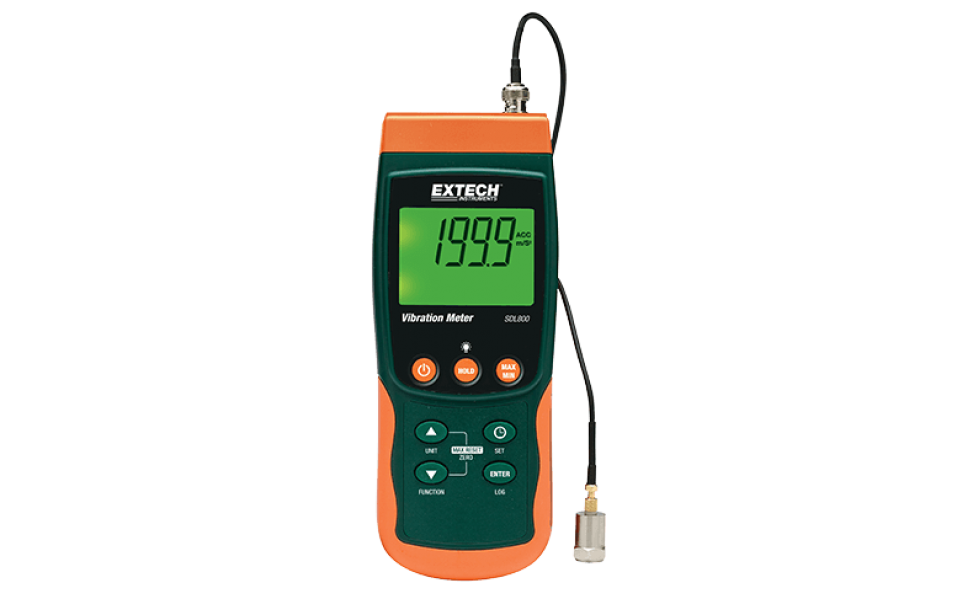

SDL800
Vibration Meter/Datalogger
Records data on an SD card in Excel® format
Features :
– Remote vibration sensor with magnetic adapter on 47.2″ (1.2m) cable
– Wide frequency range of 10Hz to 1kHz
– Basic accuracy of ±(5% + 2 digits); Meets ISO2954
– RMS, Peak Value or Max Hold measurement modes
– Adjustable data sampling rate
– Offset adjustment used for zero function to make relative measurements
– Large backlit LCD
– Stores 99 readings manually and continuous datalogging via SD memory card
– Record/Recall MIN, MAX, Data Hold and Auto power off
– Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case
| Specifications | Range |
| Acceleration | 656ft/s2 , 200m/s2 , 20.39g |
| Velocity | 7.87in/s, 200mm/s, 19.99cm/s |
| Displacement | 0.078in, 2mm (peak-to-peak) |
| Resolution | 1ft/s2 , 0.1m/s2 , 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm |
| Basic accuracy | ±(5%+2 digits) |
| Memory | 20M data records using 2G SD card |
| Dimensions | 7.2 x 2.9 x 1.9″ (182 x 73 x 47.5mm) |
| Weight | 21.1oz (599g) |
