407860

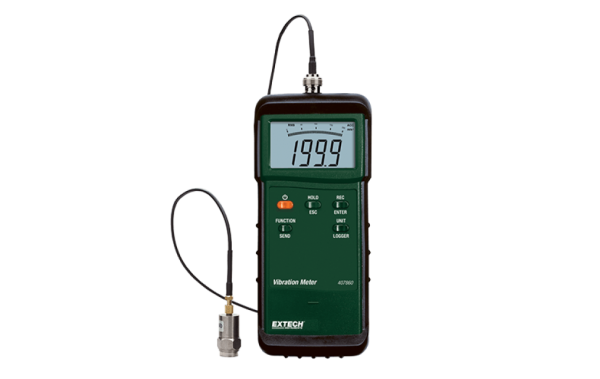

Heavy Duty Vibration Meter
Measure Acceleration, Velocity, and Displacement plus built-in PC interface
Features :
– Ranges – Acceleration: 200m/s², Velocity: 200mm/s, Displacement: 2mm
– Remote vibration sensor with magnetic adapter on 39″ (1m) cable
– Record mode stores the maximum and minimum values for later recall
– Wide frequency range of 10Hz to 1kHz
– Resolution to 0.5m/s², 0.5mm/s, and 0.005mm
– Basic accuracy of ±(5% + 2 digits)
– RMS or Peak Value measurement modes
– Data Hold, Auto shut-off
– 9V battery power or optional AC adaptor
– Complete with remote sensor, magnetic mount, 9V battery, protective rubber holster with stand, and hard carrying case
| Specifications | Range |
| Acceleration (max res) | 656ft/s² (2ft/s²) or 200m/s² (0.5m/s²) |
| Velocity (max res) | 7.87in/s (0.02in/s) or 200mm/s (0.5mm/s) |
| Displacement (max res) | 0.078in (0.001in) or 1.999mm (0.001mm) |
| Basic accuracy | ±5% |
| Dimensions (meter) | 7.1×2.9×1.3″ (180x72x32mm) |
| Weight (with probe) | 0.87lbs (395g) |
