Transilluminator Merk Wealtec MD-20_HD-20

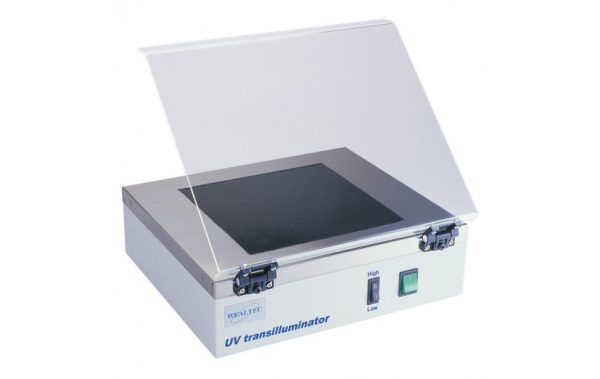

UV transilluminator (MD-20/HD-20)
Compact benchtop UV Transilluminator, MD-20 / HD-20 comprises with 6 X 8W, 302nm / 365nm UV tube, 200 x 200mm filter size, low background filter, UV radiation blocking cover, high / low intensity switch, and reflection aluminum plate. Popularly for visualization of agarose/acrylamide gel stained by EtBr, SYBR® Green, SYBR® Gold, SYPRO® Ruby, SYPRO® Orange. In addition, it can be applied in forensic science and polymer curing. Dual wavelength (302/365nm) UV-transilluminator is available.

Features :
– Low cost excitation source for gel documentation
– High / Low intensity selectable switch
– UV radiation blocking cover
– Long life time UV tubes

The spec is subject to change without prior notice.

With a view models as follows :
– MD-20 UV transilluminator, Cat. No. : 1142001, 120V/ 50-60 Hz, 302 nm, 20 x 20cm filter size
– MD-20 UV transilluminator, Cat. No. : 1142002, 230V/ 50-60 Hz, 302 nm, 20 x 20cm filter size
– MD-20 UV transilluminator, Cat. No. : 1142005, 100V/ 50-60 Hz, 302 nm, 20 x 20cm filter size
– HD-20 UV transilluminator, Cat. No. : 1142007, 120V/ 50-60 Hz, 365 nm, 20 x 20cm filter size
– HD-20 UV transilluminator, Cat. No. : 1142008, 230V/ 50-60 Hz, 365 nm, 20 x 20cm filter size
– HD-20 UV transilluminator, Cat. No. : 1142011, 100V/ 50-60 Hz, 365 nm, 20 x 20cm filter size
