Spectrophotometer Merk Thermo Scientific BioMate™_160

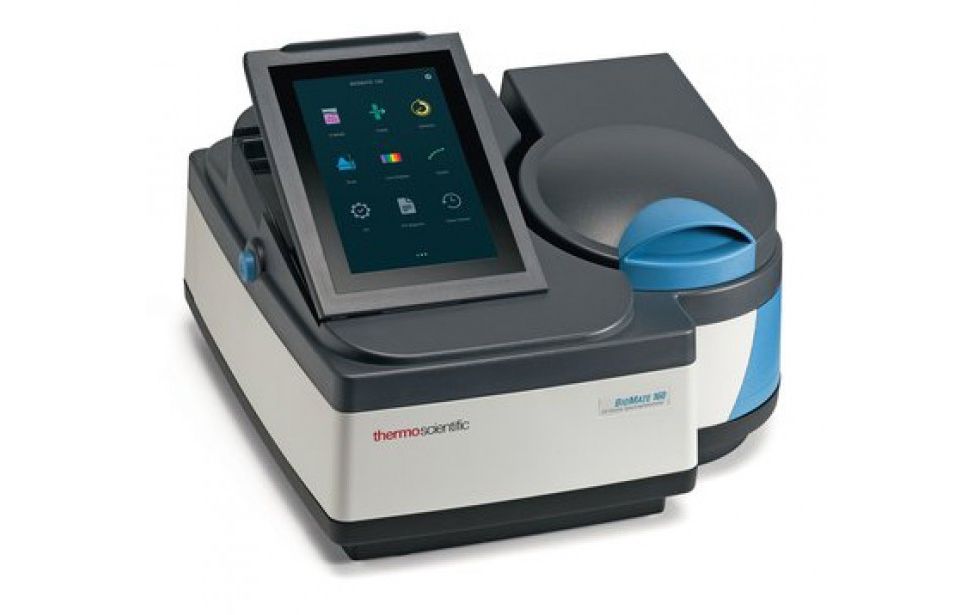

BioMate™ 160 UV-Vis Spectrophotometer
Perform quantitative measurements in life science laboratories with the automated and network-ready Thermo Scientific™ BioMate™ 160 UV-Visible Spectrophotometer. The BioMate 160 Spectrophotometer offers pre-programmed assay methods for nucleic acid and protein concentration as well as cell culture measurements. Optimized for usability and performance, this platform features a high-resolution color touchscreen, Wi-Fi networking, and a rugged design

The BioMate UV-Vis Spectrophotometer provides automation for high-throughput options and room-light resistance, allowing lid-open operation for improved speed and convenience. Software includes pre-programmed life science methods such as Nucleic Acid A260; Protein A280 and A205; Protein Colorimetric assays and OD600.

A full line of accessories, including automated cell changers and cell holders, sipper, and fiber optic probes are designed to simplify sampling and accommodate high throughput measurements and temperature control.

Features:
– 7-inch high-resolution touchscreen user interface
– Pre-programmed life science methods
– Networking capable (WiFi ready)
– Room light resistance for “open-lid” operation
– Sipper accessory
– Removable, washable sample compartment liner with magnetic placement and hold-down
– Accommodates cells up to 100 mm pathlength
– (Optional) 8-position cell changer with switchable turret
– (Optional) 4-position cell changer (long path cells)
– (Optional) Peltier-thermostatted single cell holder (20 °C – 60 °C)
– (Optional) Accessory for test-tubes up to 25 mm diameter and 150 mm height

Designed for:
– Advanced teaching labs
– R&D departments
– Applications requiring high throughput or temperature control

Deskripsi

Specification :

Product Size –
Baseline Flatness ±0.002A
Compartments Accommodates (optional):

8-position cell changer

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler
Connections Single USB-A supports flash memory devices for method and data storage
Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, mouse
Export data to network or PC via USB, Ethernet, or Wi-Fi
Print via USB, Ethernet or Wi-Fi
Description BioMate 160 UV-Visible Spectrophotometer
Detector Type Dual Silicon Photodiodes
Dimensions (L x W x H) 35.5 x 38.5 x 19.5 cm
Display 7-inch color touchscreen, tiltable, high definition, 800 × 1280 pixels
Drift (At 500 nm after 1 hour warmup) <0.0005A/Hr
Electrical Requirements External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100–240 volts, 50–60 Hz.
Keypad Touchscreen
Lamp Xenon Flash Lamp (>5 years typical, 3 years guaranteed)
Noise (RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm
Optical Design Dual beam
Photometric Accuracy Instrument ±0.002A at 0.5A

±0.004A at 1.0A

±0.008A at 2.0A
Photometric Display -3A to +5A
Photometric Range –2A to +3.5A
Photometric Repeatability ±0.001A at 1A measured at 1.0A at 546 nm
Printer Snap-on printer available
Spectral Bandwidth 2 nm
Stray Light <1.0%T 198 nm (KCl)
<0.05%T at 220 nm (NaI)
<0.03%T at 340 nm (NaNO2)
Wavelength Accuracy ±0.5 nm
Wavelength Data Interval 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm
Wavelength Range 190 nm – 1100 nm
Wavelength Repeatability < ±0.2 nm
Wavelength Scan Speed Slow, medium and fast – up to 1600 nm/min
Weight (Metric) 7.5 kg
