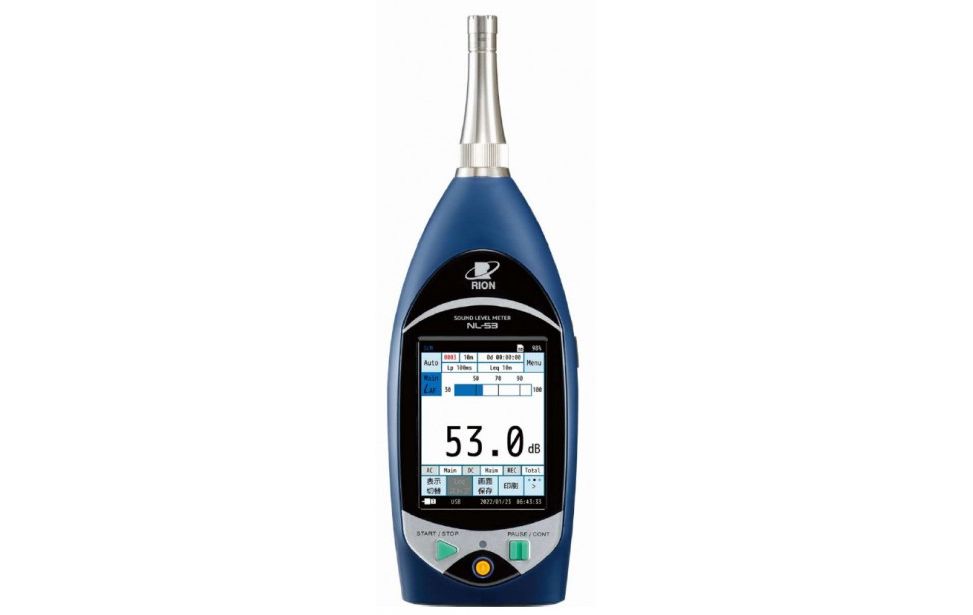

Sound Level Meter Merk Rion NL-53

NL-43/53/63
Class 1 & Class 2 Sound Level Meters

Features :
1. LAN terminal for strengthening the network connection with other communication devices
2. Web app for easy noise monitoring via a PC or smartphone web browser
3. USB Type C connector for power supply, serial communication, and SD card access, and it can be a replacement of AC adapter, RS-232C cable, and USB cable
4. A single unit can measure up to 4ch simultaneously, enabling an efficient noise measurement
5. Intuitive and easy-to-understand user interface by combining physical keys and touch panel operation
6. Calibration history can be viewed and saved to manage the measurement accuracy of the instrument
7. Enhanced measurement functions, including new calculation parameter, Leq_mov
8. Class 1 sound level meter and Class 2 sound level meter, conforming to Measurement Law, IEC, JIS, ANSI/ASA, and JJG

Deskripsi

Measurement function Moving equivalent continuous sound level Leq_mov as a newly added measurement parameter
Auto Store Function (NX-43EX) Lp store intervals of 10ms and 25ms are added
Trigger functions Level trigger

Timer Auto

External trigger
Sampling frequency (NX-43WR) 240Hz and 1200 Hz are added for NL-63 only
Operating time Alkaline battery:

16 hours for NL-43/NL-53, 12 hours for NL-63

Ni-MH rechargeable battery:

16 hours for NL-43/NL-53, 12 hours for NL-63
Size Instrument:

Approx. 265 mm (H) x 83.5 mm (W) x 34.5 mm (D)

Approx. 400 g (including batteries)

LCD touch screen panel:

QVGA (320 * 240)
External Power Supply AC adapter: NE-21P

Can also use Power Jack Adapter CC-43J and connect it to

the NC-98 series dedicated for NL-42A/52A/62A and NL-

42/52/62 and the battery pack BP-21A

USB-C: Mobile power bank can supply power to the meter.
AC/DC output Since AC output and DC output are combined, use CC-43S

cable to output them simultaneously. You can also use CC-

24 to output either AC or DC output
Comparator cable Use CC-43CT for comparator output / trigger input dual purpose
