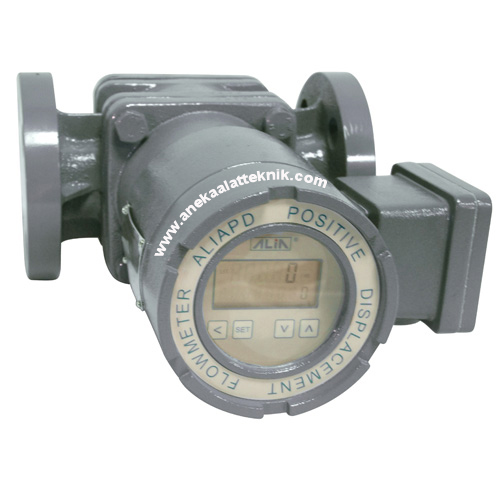

Positive Displacement Flowmeter ALIA APF860

Deskripsi

Positive Displacement Flowmeter ALIA APF860

FEATURES Positive Displacement Flowmeter ALIA APF860

25 – 150 mm (1″ – 6″) lines sizes
Handles viscosities up to 50000 CP
Wide range of application
Various process connection types available
5 digit Totalizer (Resetable) / 8 digit Totalizer (LCD)
4-20 mA and pulse output
High accuracy of +/-0.5% of reading (or+/-0.2% of reading)
Display with auto sleep function that gets up to 6 yesrs of Battry life

SPECIFICATION

Size:	Flow Range:
0025, 0040, 0050, 0080, 0100, 0150 mm	0025mm
Flow Range:	0.4 – 6 M3/Hr @ 5CP
0.007 – 200 M3/Hr	0040 mm / 0050 mm
Accuracy:	0.8 – 13 M3/Hr @ 5CP
+/- 0.5% of reading (Standard)	0080 mm
+/- 0.2% of reading (Option)	1.8 – 25 M3/Hr @ 5CP
Repeatability:	080L mm / 0100 mm
+/- 0.1% of reading	2.5 – 50 M3/Hr @ 5CP
Material:	100L mm
Body, Cover & Flange	8 – 120 M3/Hr @ 5CP
Cast Iron / Stainless Steel 316	150L mm
Roots	25 – 200 M3/Hr @ 5CP
Aluminum / Copper / Stainless Steel 316	Display:
O-Rings	Flow Rate/Totalizer
PTFE	5 Digit Flow rate / 8 Digit Totalizer
Register Housing	Dual Totalizer
Aluminum Alloy	5 Digit Totalizer (Resettable, Magnet)
Max. Viscosity:	8 Digit Totalizer (Reset from Internal)
0.3 – 200 CP (Standard)	Engineer Unit:
201 – 50000 CP (Optional)	M3/Hr, M3/Min, M3/Sec, L/Hr, L/Sec, GPM,
Operating Temperature:	GPH, GPS, FT3/Hr, FT3/Min, FT3/Sec
-10 to 80^oC	Current output:
-10 to 120^oC (Optional)	4-20 mA (2 wire)
-10 to 180^oC (Optional)	Load
Max. Pressure:	Rohm (Vdc-6)*50
16 Kg/cm2	Pulse Output:
Process Connection:	Without Display
Flange	Reed Switch (2 Wire, unscaled pulse)
JIS 10K#FF / ANSI 150#FF	2-36 VDC, 500mA Max.
Power Supply:	With Display
3.6V Battery, Size D x 1 ea	Open Collector (2 Wire, scaled pulse)
