Jual Multi Gas Detector KANE 900 PLUS Hand Held

Jual Multi Gas Detector KANE 900 PLUS Hand Held

Gas Detector adalah sebuah perangkat yang digunakan untuk mendeteksi keberadaan gas di suatu tempat atau ruang.

Alat ini wajib dimiliki oleh pekerja industri minyak, gas, dan juga petugas yang bekerja di ruang terbatas. Karena di tempat-tempat tersebut sangat rentan adanya gas-gas yang mungkin saja berbahaya bagi pekerja dan keterbatasan tersedianya oksigen yang dibutuhkan oleh pekerja selama bekerja di dalam ruang tersebut.

Misalnya saja karakteristik ruang kerja terbatas di mana kadar oksigen umumnya rendah, lalu disusul adanya gas yang mudah terbakar (oksigen dengan tingkat tinggi, dll) dan/atau bahkan beracun (CO, CO2, H2S, dll).

Maka dari itu penggunaan gas detector sangat penting sebelum kita sebagai pekerja memutuskan untuk masuk ke dalam ruang terbatas atau dalam hal ini ialah gorong-gorong

Deskripsi

Jual Multi Gas Detector KANE 900 PLUS Hand Held

Combustion Analyser Jual Multi Gas Detector KANE 900 PLUS Hand Held

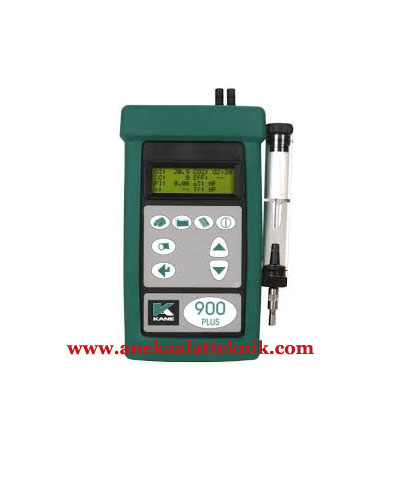

The KANE900 PLUS handheld analyser is easy to use for domestic and industrial boiler flue gas measurement and analysis. It operates on all boiler types and can display 8 parameters simultaneously showing measurements and calculations of boiler efficiency and pollution.

Kit contents:

  • Analyser with rubber protective sleeve
  • Carry case.
  • Charger
  • KMCP10 flue probe

Specification :

Parameter Resolution Accuracy Range
Temp Measurement
Flue Temperature 0.1°C/F +2.0°C +0.3% reading 0-1200°C/32 -2200°F
with suitable probe
Inlet Temperature 0.1°C/F +1°C +0.3% reading 0-50°C/32-122°F
Pressure (optional) 0.1mbar +2% of full scale +150mbar
to -150mbar
Gas Measurement *1
Oxygen 0.1% +0.2% 0-25%
Carbon Monoxide
(standard H compensated)		 1ppm +20ppm <400ppm
+5% <5000ppm
+10% >5000ppm		 0-10,000ppm,
Carbon Monoxide,
(high range)		 0.01% +5% reading from
0.1% to 10%		 0-10%
Nitric Oxide
(standard)		 1ppm +5ppm <100ppm*1
+5% >100ppm		 0-5000ppm
Nitrogen Oxide (low range) 1ppm +2ppm <30ppm
+5ppm >30ppm		 0-1000ppm
Nitrogen Dioxide 1ppm +5ppm <100ppm
+10ppm <5000ppm
+10% >500ppm		 0-100ppm
Sulphur Dioxide 1ppm +5ppm <100ppm
+5% >100ppm		 0-500ppm
Calculations
Carbon Dioxide*2 0.1% +0.3% reading 0-99.9%
Losses 0.1% +1.0% reading 0-99.9%
Efficiency 0.1% +1.0% reading 0-99.9%
Excess Air 0.1% +0.2% 0-2885.0%
Temp (Nett) 1.0°C/F +2°C +0.3% reading 0-600°C/32-1112°F
CO/CO2 ratio 0.0001 +0.0001 0-0.9999
Poison Index 0.01% +0.01 0-99.99

*1            Using dry gases at STP
*2            Calculated

Water meter B&R

https://flowmeterjakarta.com/product/water-meter-amico-lxsg-65-e/

Parameter Description
Pre-programmed Fuels Natural gas, Town gas, Gascor, Light Oil, Heavy Oil, Propane, Butane, Anthracite, Coke, Coal, Kinsale Gas.
Dimensions Weight 1kg
                  Handset 220mm x 55mm x 120mm
                  Probe L240mm x Dia8mm with 285mm long stainless steel shaft, type K thermocouple and 1.5m long neoprene hose
Ambient Operating Range -5°C to +50°C/10% to 90% RH non condensing
Power Supply(battery charger) Input: 110Vac/220 Vac nominal
Output:  12 Vac off load
Battery Life >6 hours from full charge
