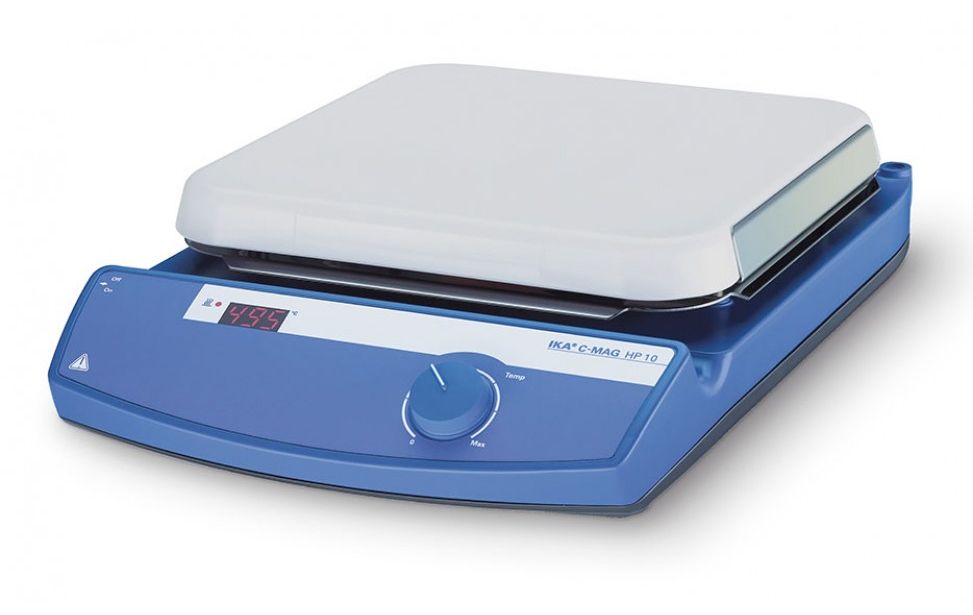

Hotplate Merk Ika C MAG HP 10

C-MAG HP 10
Hotplate
Made of ceramic glass which offers excellent chemical resistance.
• Fixed safety circuit of 550 °C
• Hot Top indicator >> hot surface warning to prevent burns!!
• Exact temperature setting via digital display (LED)
• Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
• Digital error code display
• Elevated control panel for protection against leaking liquids

Deskripsi

Technical Data :

Number of heating points 1
Heat output 1500 W
Heating temperature range 50 – 500 °C
Heat control LED
Set temperature resolution 10 ±K
Connection for ext. temperature sensor ETS-D5
Volume max. 15 l
Heating rate heating plate 5 K/min
Set-up plate material ceramic
Set-up plate dimensions 260 x 260 mm
Dimensions (W x H x D) 300 x 105 x 415 mm
Weight 6 kg
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
Voltage 230 / 120 / 100 V
Frequency 50/60 Hz
Power input 1505 W
