Heating Mantle Merk Gopal Extraction Mantles

Extraction Mantles

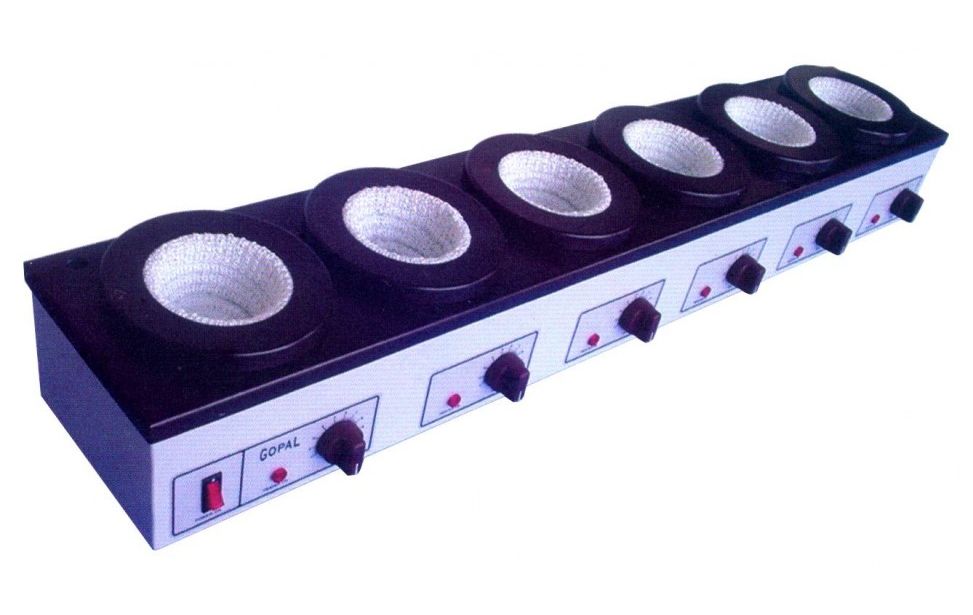

Extraction Mantles are available in 2 models, 3 recess and 6 recess. The heating elements are housed in a strong Aluminium housing, powder coated in attractive colour.

With a view models as follows :

Cat. No.

Flask capacity in ml

Number of Recess

Total Watts

@ 220-240 V

Actual Size

L x B x H (mm)

Weight

Kgs.

AV-SM-01

250

3

450

525 x 175 x 150

4.5

AV-SM-02

500

3

600

645 x 205 x 185

6

AV-SM-03

1000

3

900

675 x 215 x 185

6.5

AV-SM-04

250

6

900

1025 x 175 x 150

7

AV-SM-05

500

6

1200

1225 x 205 x 185

8.3

AV-SM-06

1000

6

1800

1300 x 215 x 185

9



Deskripsi

Technical specifications :
– Capacity : 3 or 6 recess
– Thermal insulation : ceramic fibre
– Energy controller : Individual built-in simmerstat for each recess
– Max. Temperature : Upto 450 deg C
– Case construction : Aluminium, powder coated in attractive colours
– Support rods : Provided 12 mm dia Aluminium rods, 2 nos. vertical and 1 nos. horizontal
– Connecting Bosses : Provided
– Flask fixing Clamps : Not Provided
– Mains chord : 3 core, 2 meter long
– Mains power : 220-240V, Single Phase A/C
– Replacement element : Available
