GAS METER ACTARIS FLUXI 2000/TZ

The Actaris Gas Fluxi 2000/TZ commercial and industrial meters comprise a range of turbine gas measurement devices with capacities of 100 to 10000 m³/h.

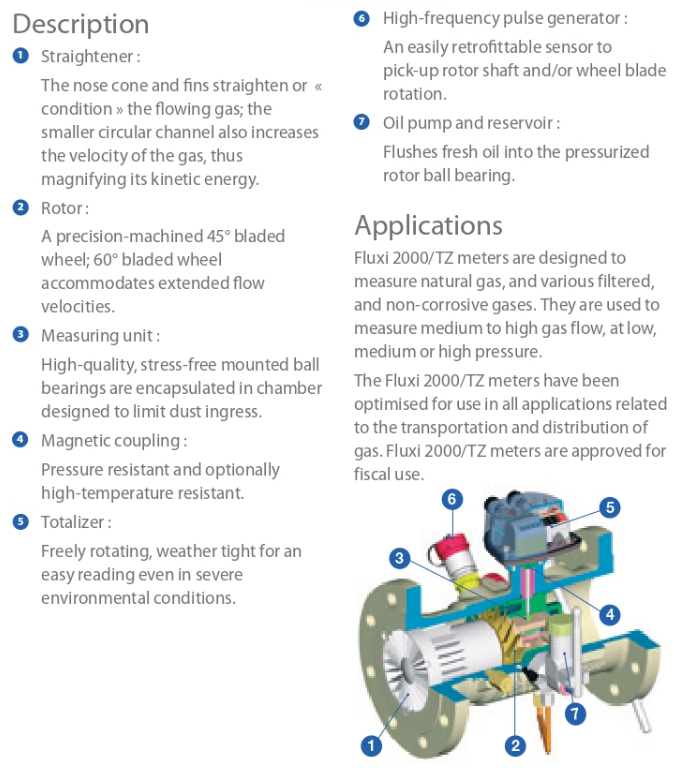

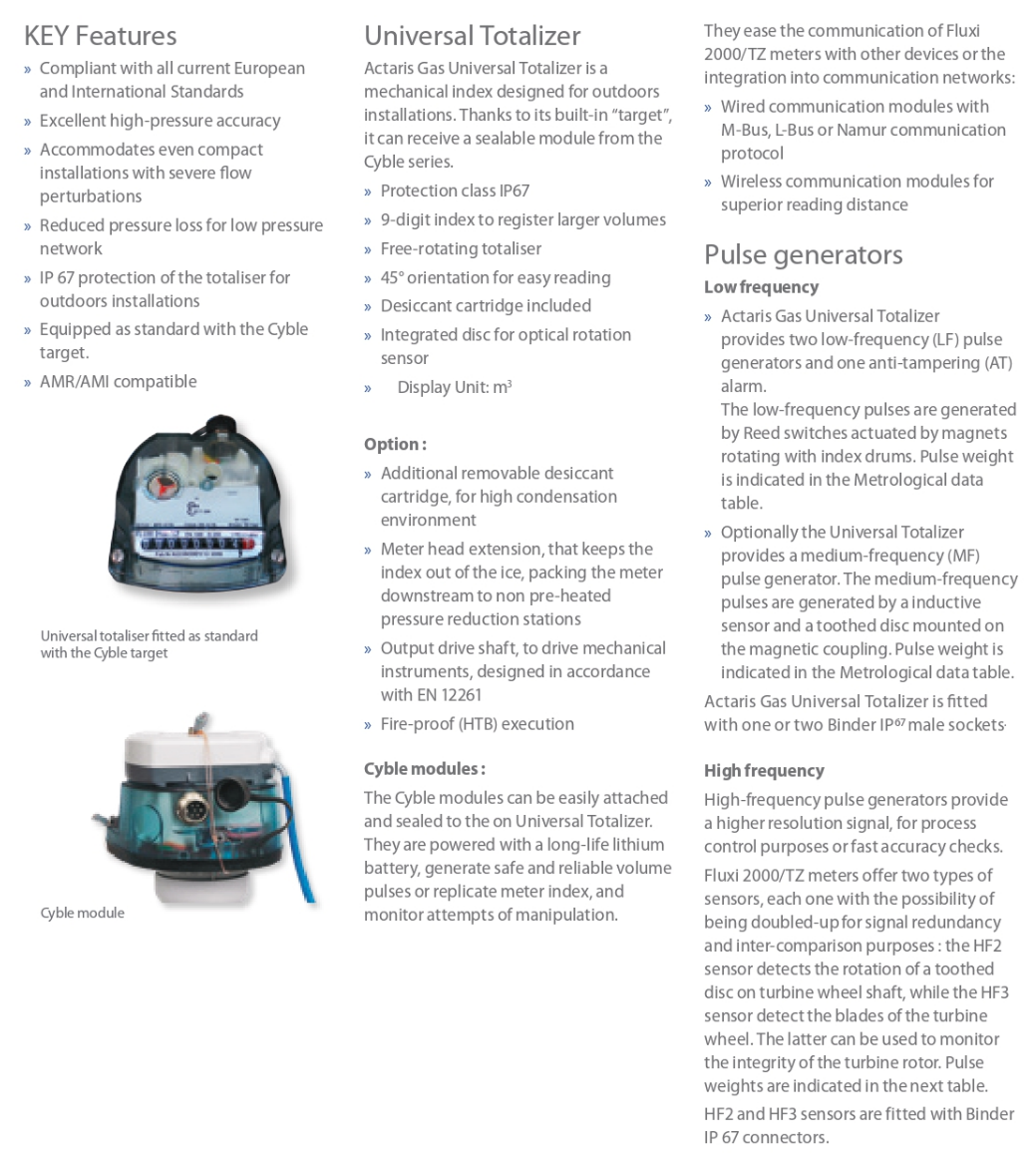

The use proven, time-tested design of these meters provide accurate measurement across their respective flow ranges, even with severely perturbed flow velocities. Long-life and low maintenance are assured by the combination of high-quality ball bearings and efficient lubrication. Turbine gas meters are based on a flow velocity measurement principle. The fluid flow through the meter makes the rotor with multiple blades, mounted on a free-running bearing system, to rotate on its axis. The angular velocity to the turbine rotor is directly proportional to the fluid’s linear velocity through the meter housing. The rotor shaft in turn, using a set of internal gears, drives a transmission shaft linked to a magnetic coupling; the latter transfers the mechanical motion of the turning rotor from the pressurized to the non-pressurized area. A gear train converts the mechanical motion into revolutions of display drums and pulsing devices into the totalizer.Within the gear train, timing gears – or change gears- allow the turbine error of indication to be shifted in a linear fashion.

Specifications

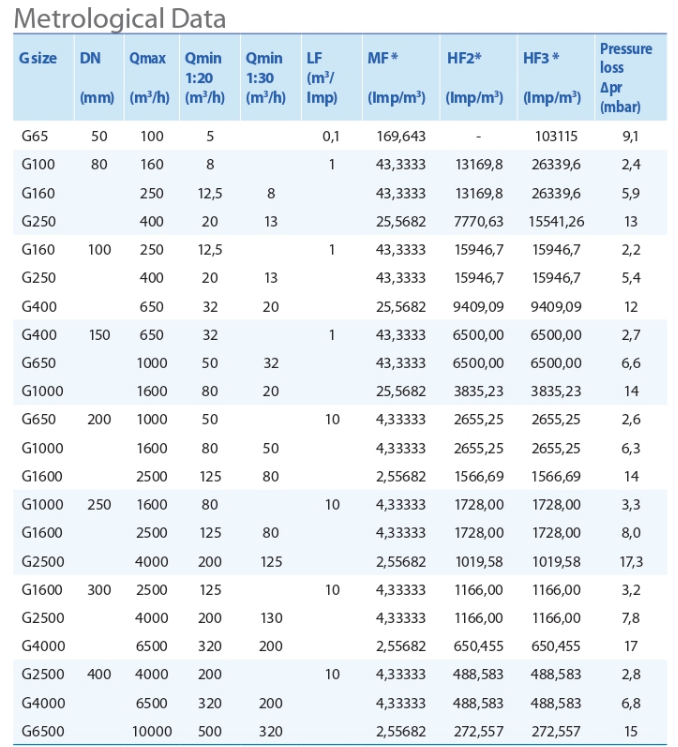

Maximum Flow Rate 5 m3/h to 10,000 m3/h
Accuracy Class 1.0

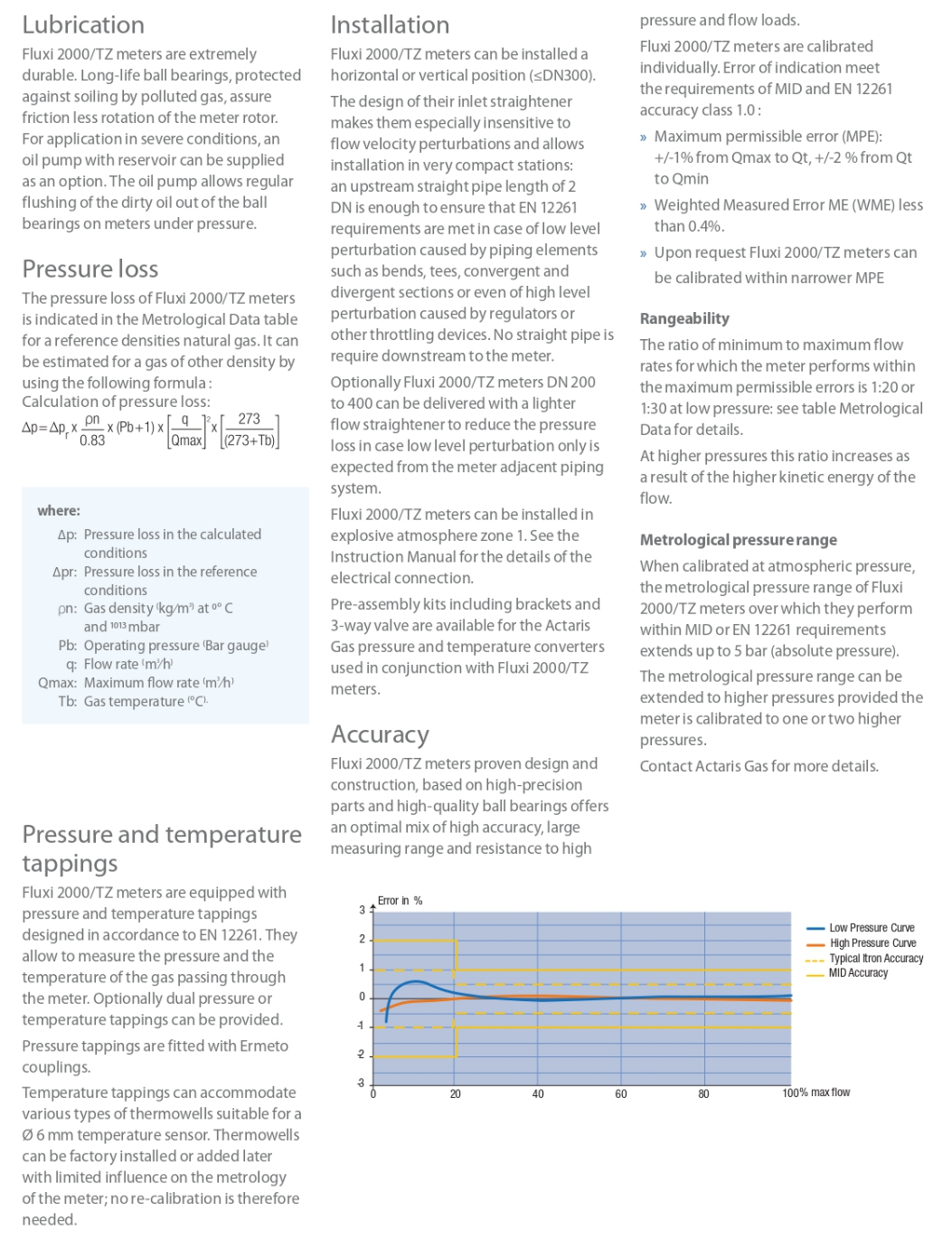

Rangeability 1:20, 1:30
Nominal Diameters DN 50 to DN 400
Maximum operating pressure Up to 100 bar
Pressure Rating PN 10, 16, 25, 40, 50, 100 Class 150, 300, 600
Metrologic Temperature Range -25°C to +55°C
Storage Temperature Range -40°C to +70°C

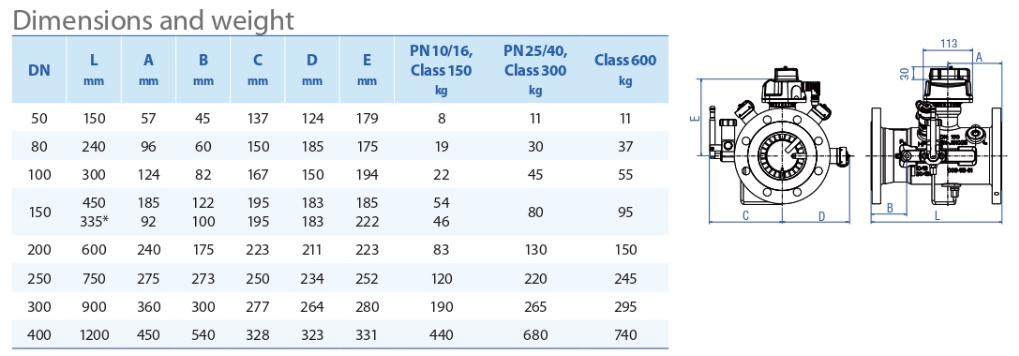

Length 3 DN
Body Material Ductile iron, low carbon steel
Mechanical environment Class M1
Electromagnetic environment Class E2
Mounting position Horizontal, Vertical
Conformity 2014/32/EU Measuring Instruments (MID) 2014/68/EU Pressure Equipment Directive (PED) 2014/34/EU Potentially explosive atmospheres (ATEX) 2014/30/EU Electromagnetic Compatibility (EMC) EN 12261 “Gas meters — Turbine gas meters”
