GAS METER ACTARIS DELTA SILVER EDITION ALUMINIUM SERIES

The Delta Silver Edition range combines Actaris Gas’s proven Delta range with an eco-friendly design resulting in a lighter smaller and easy to maintain product

Main Characteristics

Only the front cover must be filled with a lubricant.
Thermowells: supplied as an option.
Double Low Frequency transmitter connected on a Binder 6 pins plug. Antitampering is supplied as a standard.
MF is supplied as an option.
HF is supplied as an option, connected on a 3 pin binder. Possible to be retrofitted.

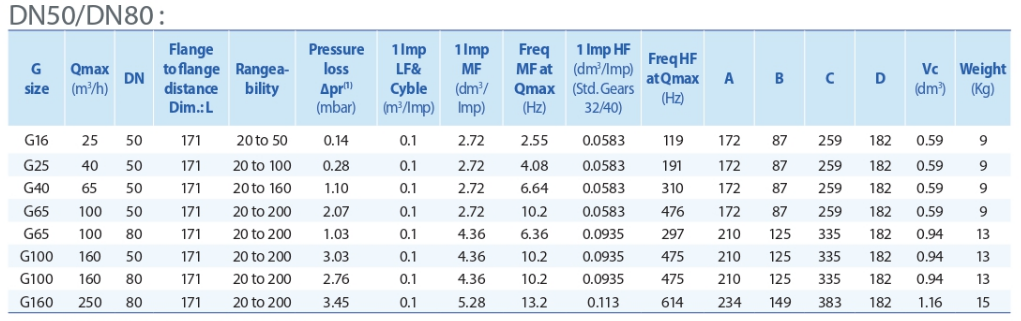

Technical Features

Flow rate 0.4 m3/h to 250 m3/h
G size G16, G25, G40, G65 G100 and G160
Rangeability 1:20 to 1:200
Nominal diameter 50 and 80 (2” and 3”)
Flanging PN 10/16 and Class 150 (125)
Pressure range 19.3 bar
