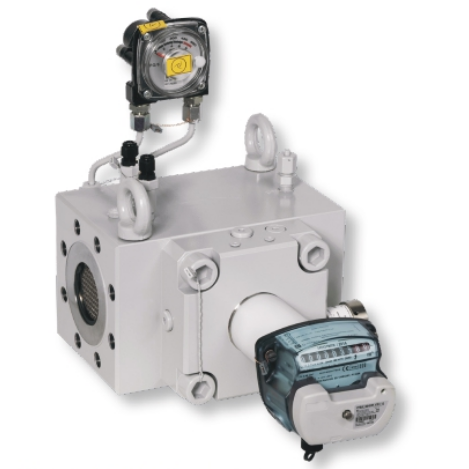

GAS METER ACTARIS DELTA S1-FLOW STEEL SERIES

S1-Flow in steel is designed to meet the highest requirement, both in accurate measurement, due to s-flow technology, and high pressure conditions.

Main Characteristics

Only the front cover must be filled with a lubricant.
MF is supplied as an option.
2 thermowells are supplied as option
A by-pass can be installed as an option. It enables the gas to flow even if the meter is blocked for any reason.
An alarm can be remotely sent requesting for maintenance.
Up to 2 HF are supplied as option

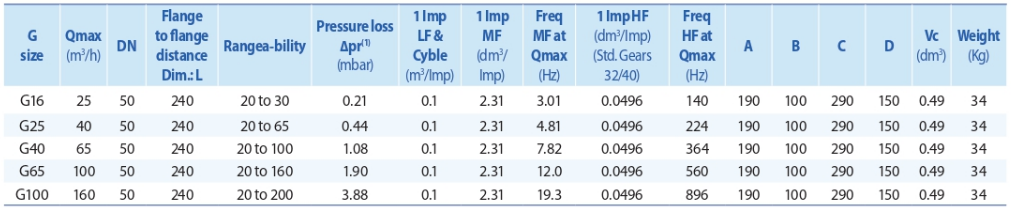

Technical Features

Flow rate 0.4 m3/h to 160 m3/h
G size G16, G25, G40, G65 and G100
Rangeability 1:20 to 1:200
Nominal diameter 50 (2”)
Flanging PN 10/16 to PN40 Class 150 to Class 600
Pressure range 101.2 bar
