GAS METER ACTARIS DELTA REFERENCE METER

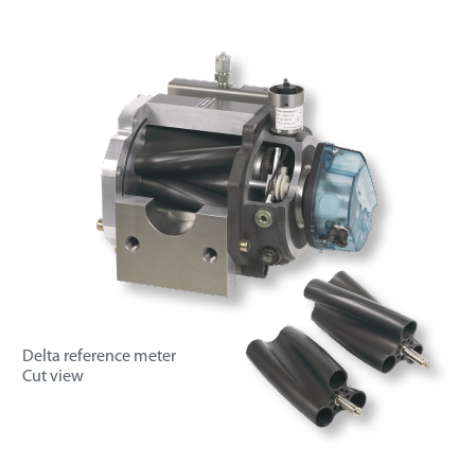

In this meter, the classic pistons are replaced by 3-lobe and 60 °twisted pistons, eliminating the normal pulsations and resonance of the conventional rotary meter. Developed to attend the highest requirements in terms of accuracy, stability and noise level, Delta reference meter is ideal for Metrology Institutes.

Main Characteristics

S-flow technology.
Only front cover must be filled with lubricant.
Thermowells: supplied as an option.
Double Low Frequency transmitter connected on a Binder 6 pins plug and Anti-tampering are supplied as a standard.
MF is supplied as an option.
HF is supplied as an option, connected on a Binder 3 pin plug.

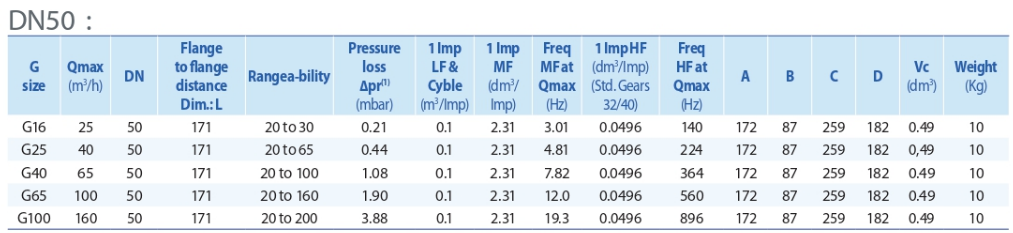

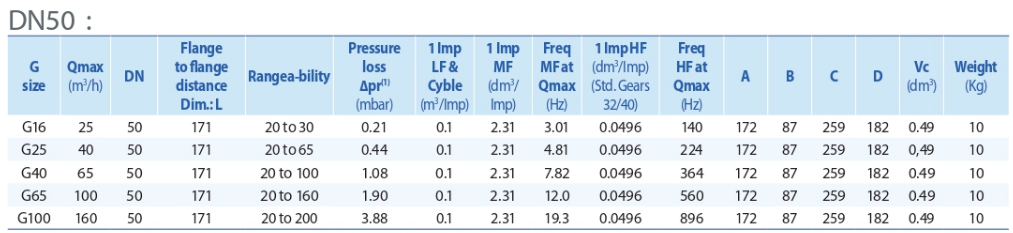

Technical Features

Flow rate 1 m3/h to 160 m3/h
G size G16, G25, G40, G65 and G100
Rangeability 1:20 to 1:160
Nominal diameter 50 (2”)
Flanging PN 10/16 and Class 150 (125)
Pressure range 16 bar
