GAS METER ACTARIS DELTA EVO DUCTILE IRON SERIES

The Delta Evo range combines Actaris Gas’s proven Delta range with an eco-friendly resulting in a smaller and easy to maintain product.
The meters are designed to support high temperatures without impact on both safety and metrology.
Due to the 3xDN flange to flange distance dimension, the replacement of turbine meters is possible without modifying the installation.

Main Characteristics

Only the front cover must be filled with a lubricant.
Thermowells: supplied as an option.
Double Low Frequency transmitter connected on a Binder 6 pins plug. Anti-tampering is supplied as a standard.
MF is supplied as an option.
HF is supplied as an option, connected on a 3 pin binder. Possible to be retrofitted.
High Temperature Loading: fire resistant PN5 is supplied as an option. Not offered along with HF.

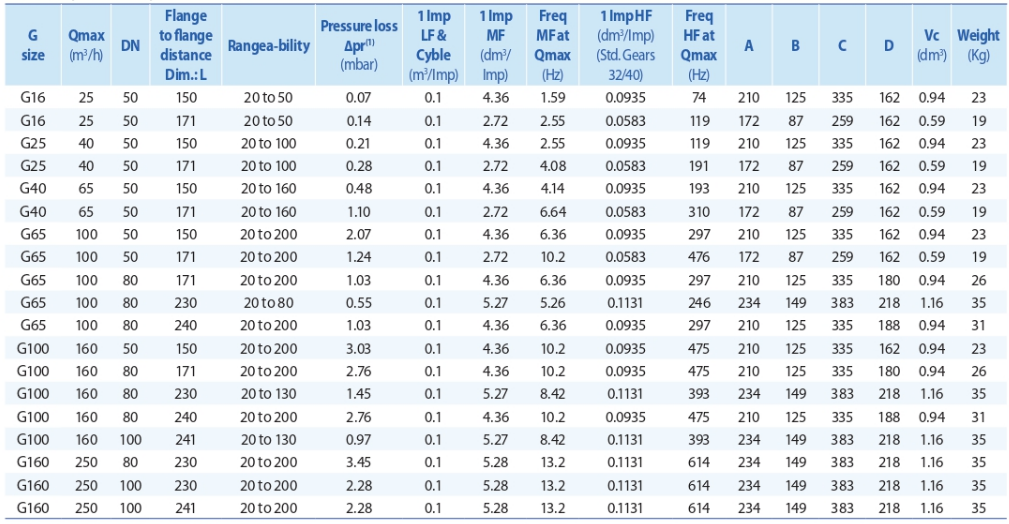

Technical Features

Flow rate 0.4 m3/h to 250 m3/h G size G16, G25, G40, G65, G100, G160
Rangeability 1:20 to 1:200
Nominal diameter 50, 80, and 100 (2”, 3”, and 4”)
Flanging PN 10/16 and Class 150 (125)
Pressure range 19.3 bar
