GAS METER ACTARIS DELTA COMPACT

The Actaris Gas meter is ideal for installation in extremely small cabinets.

Main Characteristics

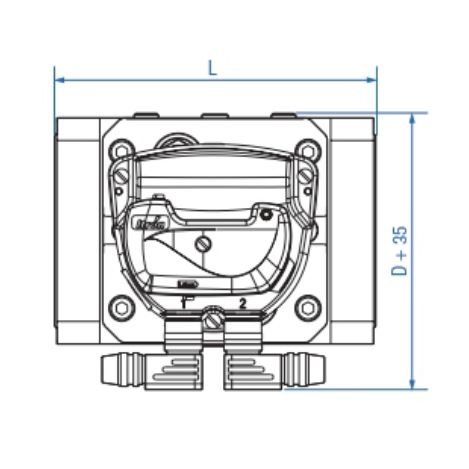

Available in thread version (L=121mm) or flanged version (L=171mm).
Only the front cover has to be filled with lubricant.
Thermowell: supplied as an option.
Double Low Frequency transmitter connected on a Binder 6 pins plug. Anti-tampering is supplied as a standard.
HF is supplied as an option, connected on a Binder 6 pins plug.

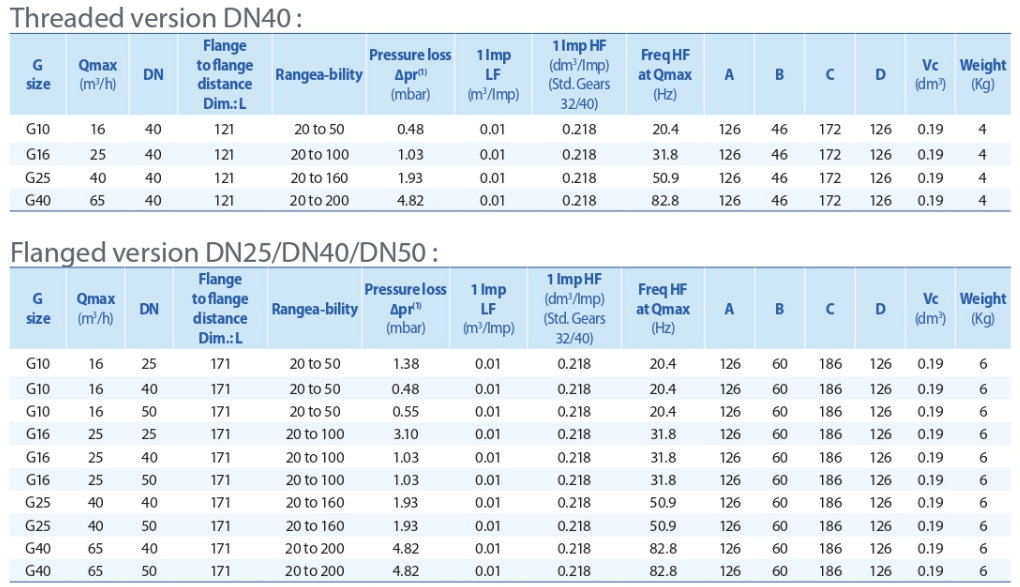

Technical Features

Flow rate 0.25 m3/h to 65 m3/h
G size G10, G16, G25 and G40
Rangeability 1:20 to 1:200

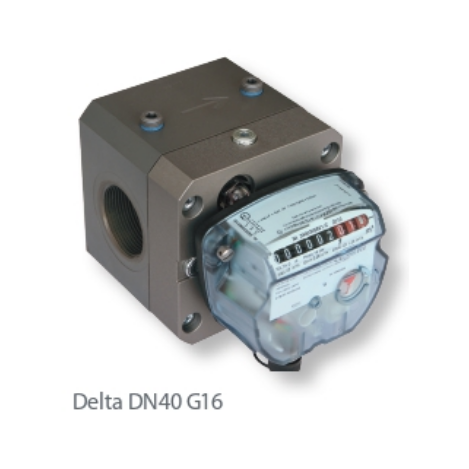

Threaded version DN40 1½’’ BSP or NPT
Flanged version DN25, DN40 and DN50 (1’’, 1½’’, 2’’) ISO PN10/16 Class 150 (125)
Pressure range Up to 19.3 bar
