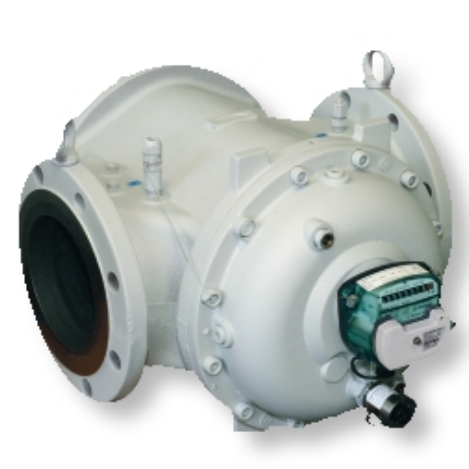

GAS METER ACTARIS DELTA 2080/2100 & S3-FLOW

S3-FLOW is built up with s-flow technology to meet the highest requirements in accuracy measurement, being ideal to be used as a reference meter.

Main Characteristics

Both front and rear covers must be filled with a lubricant.
Thermowells: supplied as an option.
Double Low Frequency transmitter connected on a Binder 6 pins plug. Anti-tampering is supplied as a standard.
MF is supplied as an option.
HF is supplied as an option, connected on a 3 pin binder.
High Temperature Loading: fire resistant PN5 is supplied as an option. Not offered along with HF.

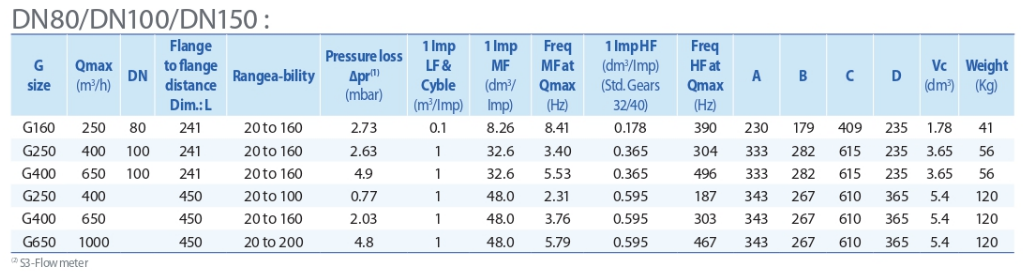

Technical Features

Flow rate 1.6 m3/h to 1000 m3/h
G size G160, G250, G400, G650
Rangeability 1:20 to 1:200

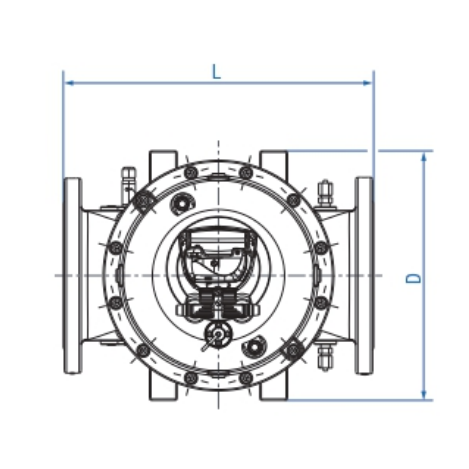

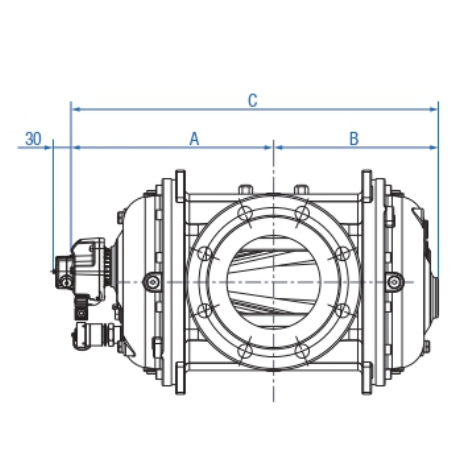

Nominal diameter 80, 100 and 150 (3”, 4” and 6”)
Flanging PN 10/16 and Class 150 (125)
Pressure range 16 bar (Option: 19.3 bar)
