GAS METER ACTARIS DELTA 2080/2100

Completing the whole aluminium series, this meter is design to measure big flow rates achieving a good compromise between that characteristic and its size.

Main Characteristics

Both front and rear covers must be filled with a lubricant.
Thermowells: supplied as an option.
Double Low Frequency transmitter connected on a Binder 6 pins plug. Anti-tampering is supplied as a standard.
MF is supplied as an option.
HF is supplied as an option, connected on a 3 pin binder.

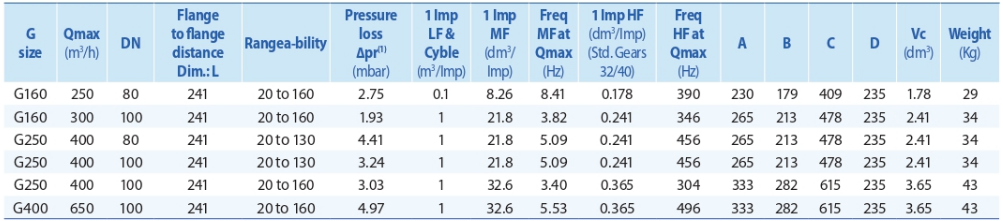

Technical Features

Flow rate 1.5 m3/h to 650 m3/h
G size G160, G250 and G400
Rangeability 1:20 to 1:200
Nominal diameter 80 and 100 (3” and 4”)
Flanging PN 10/16 and Class 150 (125)
Pressure range 16 bar (Option: 19.3 bar)
