COD Thermoreactor Merk Velp ECO_16 ECO_6

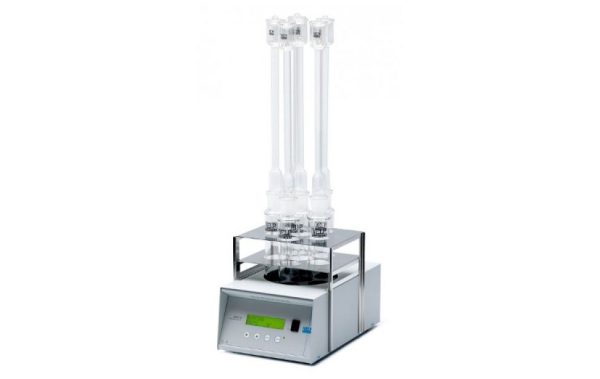

ECO 6 Thermoreactor, COD Analysis
6-position thermoreactor for Chemical Oxygen Demand (COD) with settable temperature (up to 200 °C) and operating time (up to 199 minutes).
COD Analysis Thermoreactor ECO 6 ensures a simple and easy programming of time and temperature, the parameters involved in the analysis.
Through the digital display it is possibile to monitor the test at any time, with the countdown constantly shown.
The unit automatically shuts down when the analysis time expires, whilst safety is of primary importance, as demonstrated by the several acoustic and visual signals that report unpleasant situations.
ECO 6 COD Thermoreactor has been originally designed to support relatively big test tubes (Ø 42 mm), but thanks to smart reducer it can be used with 18 small tubes (Ø 16 mm). This makes ECO 6 really versatile and flexible, as it can digest samples according to different methods.
The micro digestion method, with Ø 16 mm test tubes, minimizes reagent consumption and reduces the required space and equipment to one reactor block that works on several samples at the same time. ECO 6 is suitable for performing a short time COD analysis, in only 30 minutes with a high digestion temperature (160 °C).
When using the Ø 42 mm tubes, a kit of glassware is necessary.
Precise Control
– Electronic temperature control
– Temperature regulation from ambient to 200 °C
– Analysis time can be set from 1 to 199 minutes or continuous
High Versatility
– Processes up to 6 x 200 ml test tubes, Ø 42 mm
– Or 6 x 22 mm test tubes or 18 Ø 16 mm test tubes
– LCD countdown display shows the temperature and remaining time
Fast & Economical
– COD analysis in only 30 minutes at 160 °C
– 16 mm diameter tubes minimize reagent consumption
– LCD display for immediate understanding
Optimized Selection
– Automatic shut-down at run end
– Acoustic signals, e.g., at shut-down
– Antisplash bells protect the user and other sample
