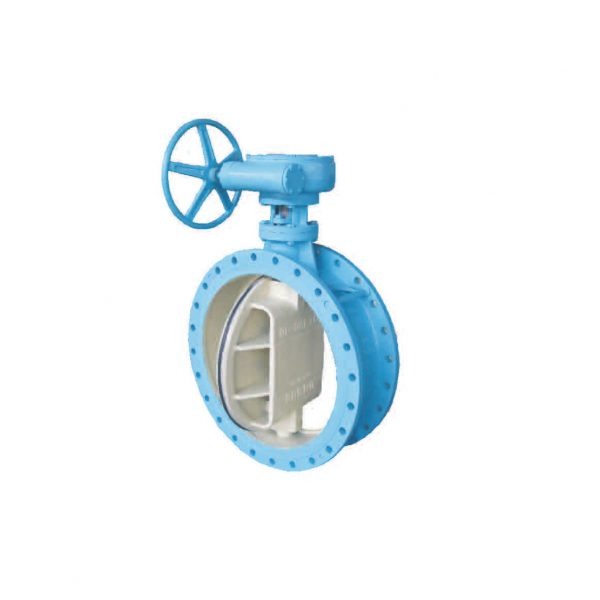

Butterfly ValveMerk Weflo, 2105(2106)
Working Pressure
- 2105 size 150 to 2400, 10 bar
- 2106 size 150 to 800, 16 bar
Working Temperature
- -10ºC to 120ºC for EPDM liner
- -10ºC to 82ºC for NBR liner
Corrosion Protection
- Inside and outside liquid epoxy painting of fusion bonded epoxy powder coated (FBE)
Deskripsi
Specifications
- Valves comply with EN593
- Stainless steel 304 seat
- EPDM/NBR ring clamped on disc
- Actuator ready with top flange in accordance with ISO 5211-1
- Operated by gearbox with nut or handwheel
- Flanges EN1092-2 PN10/PN16 or other types
- Face to face dimension conforms to EN558-1 basic series 13
